Cee Connectors
CEE-connectors 16/32A series GRIP
28 products
Representative models
CEE-connectors 16/32A series GRIPThis series has 28 models; showing 6 representative models. Search any other article number, or just ask us.
| Article no. | Name | Voltage | Rated current | Poles | Clock hour | Protection | Connection system | Material | |
|---|---|---|---|---|---|---|---|---|---|
|

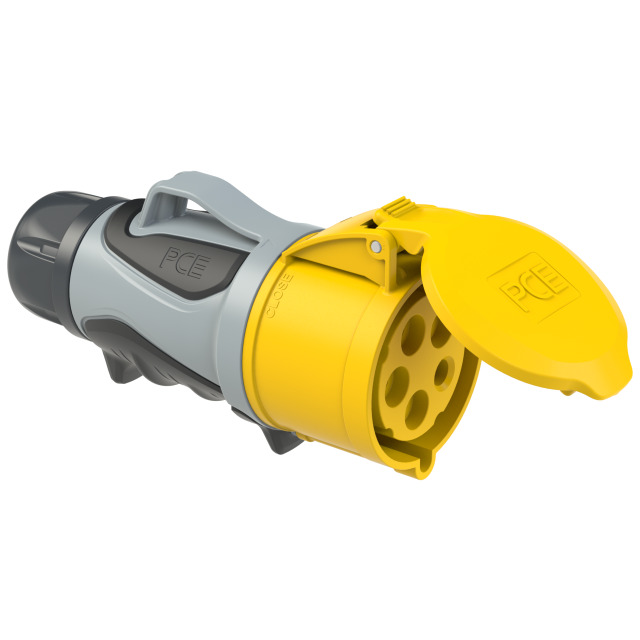

2153-4 | CEE-connector 16A 5p 4h IP54 GRIP | 110 V (50+60 Hz) yellow | 16 | 5 | 4 | IP54 | Screwed terminal | Plastic |
|
|
2153-6 | CEE-connector 16A 5p 6h IP54 GRIP | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP54 | Screwed terminal | Plastic |
|

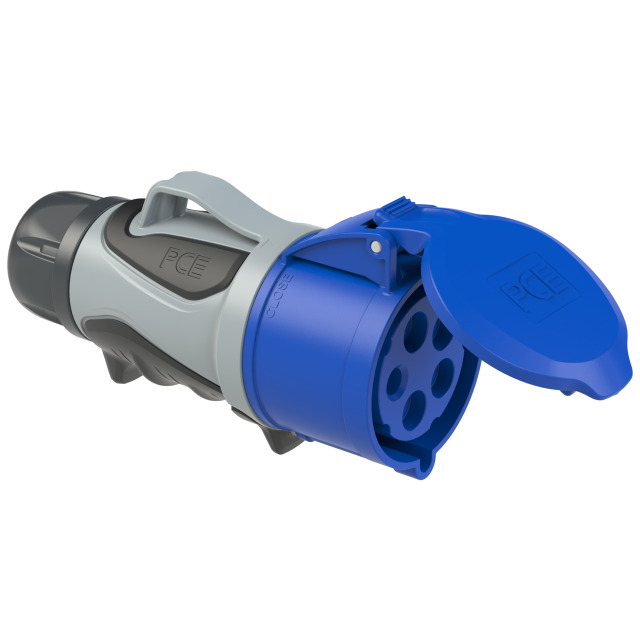

2153-9 | CEE-connector 16A 5p 9h IP54 GRIP | 200-250 V (50+60 Hz) blue | 16 | 5 | 9 | IP54 | Screwed terminal | Plastic |
|
|
2253-4 | CEE-connector 32A 5p 4h IP54 GRIP | 110 V (50+60 Hz) yellow | 32 | 5 | 4 | IP54 | Screwed terminal | Plastic |
|
|
2253-6 | CEE-connector 32A 5p 6h IP54 GRIP | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP54 | Screwed terminal | Plastic |
|
|
2253-9 | CEE-connector 32A 5p 9h IP54 GRIP | 200-250 V (50+60 Hz) blue | 32 | 5 | 9 | IP54 | Screwed terminal | Plastic |
Other series
Cee ConnectorsRequest a quote
Buyers often have nothing but a part number — that is enough. Send it and we come back with price, lead time and alternatives.
