Cee Flanged Plugs
CEE-flanged plugs 20/30A series UL
216 products
Representative models
CEE-flanged plugs 20/30A series ULThis series has 216 models; showing 19 representative models. Search any other article number, or just ask us.
| Article no. | Name | Voltage | Rated current | Poles | Clock hour | Protection | Connection system | Material | |
|---|---|---|---|---|---|---|---|---|---|
|
5139-4 | CEE-inlet wall mount 20A 2P3W 4h IP44 UL | – | 16 | 3 | 4 | IP44 | Screwed terminal | Plastic |
|

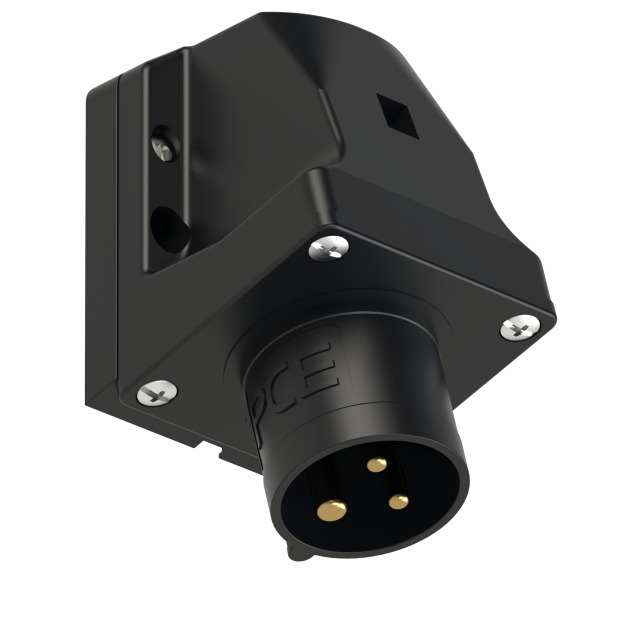

5139-5 | CEE-inlet wall mount 20A 2P3W 5h IP44 UL | – | – | 3 | 5 | IP44 | Screwed terminal | Plastic |
|

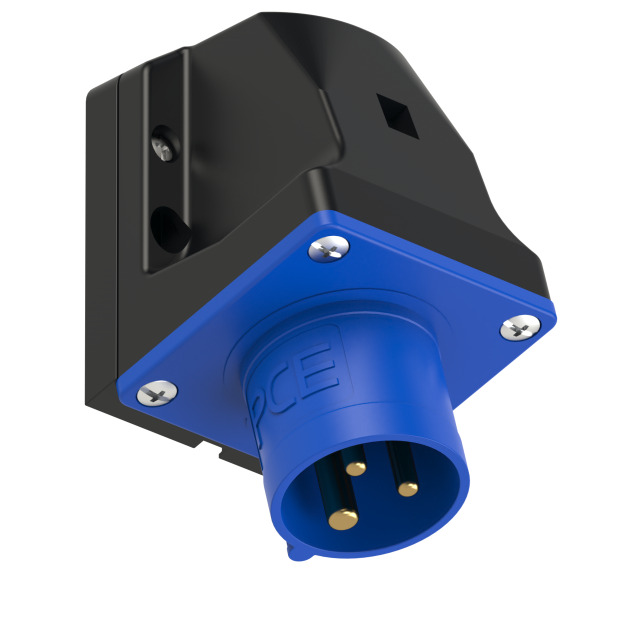

5139-6 | CEE-inlet wall mount 20A 2P3W 6h IP44 UL | – | 16 | 3 | 6 | IP44 | Screwed terminal | Plastic |
|
|
5139-7 | CEE-inlet wall mount 20A 2P3W 7h IP44 UL | – | – | 3 | 7 | IP44 | Screwed terminal | Plastic |
|
5149-12 | CEE-inlet wall mount 20A 3P4W 12h IP44 UL | – | – | 4 | 12 | IP44 | Screwed terminal | Plastic |
|
5149-5 | CEE-inlet wall mount 20A 3P4W 5h IP44 UL | – | – | 4 | 5 | IP44 | Screwed terminal | Plastic |
|
5149-6 | CEE-inlet wall mount 20A 3P4W 6h IP44 UL | – | 16 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|
5149-7 | CEE-inlet wall mount 20A 3P4W 7h IP44 UL | – | – | 4 | 7 | IP44 | Screwed terminal | Plastic |
|
5149-9 | CEE-inlet wall mount 20A 3P4W 9h IP44 UL | – | 16 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|
5159-5 | CEE-inlet wall mount 20A 4P5W 5h IP44 UL | – | – | 5 | 5 | IP44 | Screwed terminal | Plastic |
|
5159-6 | CEE-inlet wall mount 20A 4P5W 6h IP44 UL | – | 16 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|
5159-7 | CEE-inlet wall mount 20A 4P5W 7h IP44 UL | – | – | 5 | 7 | IP44 | Screwed terminal | Plastic |
|
5159-9 | CEE-inlet wall mount 20A 4P5W 9h IP44 UL | – | 16 | 5 | 9 | IP44 | Screwed terminal | Plastic |
|
5239-4 | CEE-inlet wall mount 30A 2P3W 4h IP44 UL | – | 32 | 3 | 4 | IP44 | Screwed terminal | Plastic |
|
5239-6 | CEE-inlet wall mount 30A 2P3W 6h IP44 UL | – | 32 | 3 | 6 | IP44 | Screwed terminal | Plastic |
|
5249-6 | CEE-inlet wall mount 30A 3P4W 6h IP44 UL | – | 32 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|
5249-9 | CEE-inlet wall mount 30A 3P4W 9h IP44 UL | – | 32 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|
5259-6 | CEE-inlet wall mount 30A 4P5W 6h IP44 UL | – | 32 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|
5259-9 | CEE-inlet wall mount 30A 4P5W 9h IP44 UL | – | 32 | 5 | 9 | IP44 | Screwed terminal | Plastic |
Other series
Cee Flanged Plugs- CEE-wall mounted plug 16/32A 408
- CEE-wall mounted plug 63/125A 45
- CEE-flanged plugs straight 16/32A 348
- CEE-flanged plugs straight 63/125A 77
- CEE-flanged plugs sloping 16/32A 245
- CEE-flanged plugs sloping 63/125A 84
- CEE-wall mounted plugs with phase inverter 16/32A 12
- CEE-flanged plugs with phase inverter 16/32A 20
- CEE-flanged plugs 60A IP69k series UL 13
