Cee Plugs
CEE-plugs with phase inverter 16/32A
30 products
Representative models
CEE-plugs with phase inverter 16/32AThis series has 30 models; showing 6 representative models. Search any other article number, or just ask us.
| Article no. | Name | Voltage | Rated current | Poles | Clock hour | Protection | Connection system | Material | |
|---|---|---|---|---|---|---|---|---|---|
|
|
7014-6 | CEE-phase inverter plug 16A 4p 6h IP44 SHARK | 380-415 V (50+60 Hz) red | 16 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|

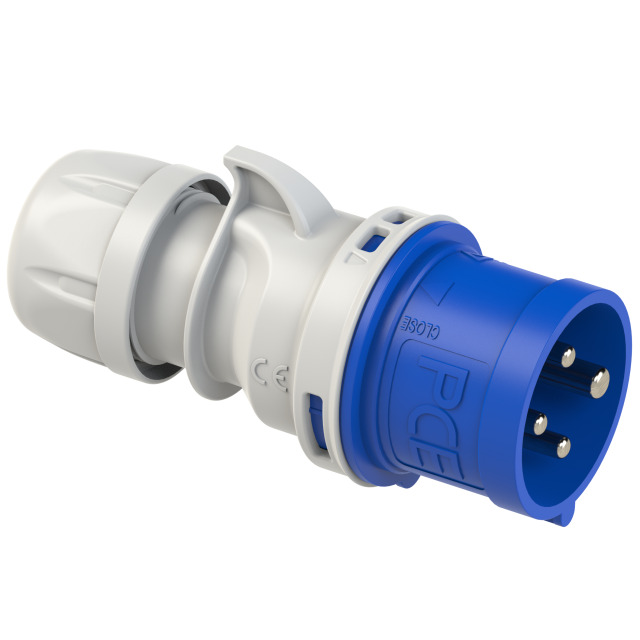

7014-9 | CEE-phase inverter plug 16A 4p 9h IP44 SHARK | 200-250 V (50+60 Hz) blue | 16 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|

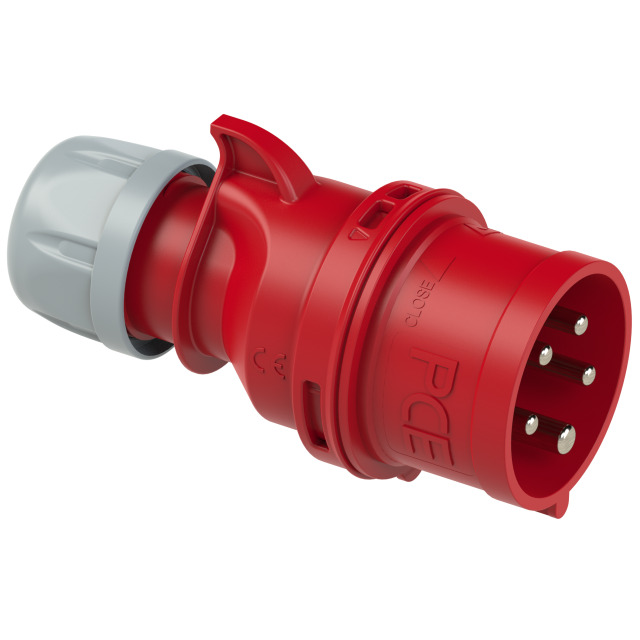

7015-6 | CEE-phase inverter plug 16A 5p 6h IP44 SHARK | 400 V (50+60 Hz) red | 16 | 5 | 6 | IP44 | Screwed terminal | Plastic |
|
|
7024-6 | CEE-phase inverter plug 32A 4p 6h IP44 SHARK | 380-415 V (50+60 Hz) red | 32 | 4 | 6 | IP44 | Screwed terminal | Plastic |
|
|
7024-9 | CEE-phase inverter plug 32A 4p 9h IP44 SHARK | 200-250 V (50+60 Hz) blue | 32 | 4 | 9 | IP44 | Screwed terminal | Plastic |
|
|
7025-6 | CEE-phase inverter plug 32A 5p 6h IP44 SHARK | 400 V (50+60 Hz) red | 32 | 5 | 6 | IP44 | Screwed terminal | Plastic |
Other series
Cee PlugsRequest a quote
Buyers often have nothing but a part number — that is enough. Send it and we come back with price, lead time and alternatives.
